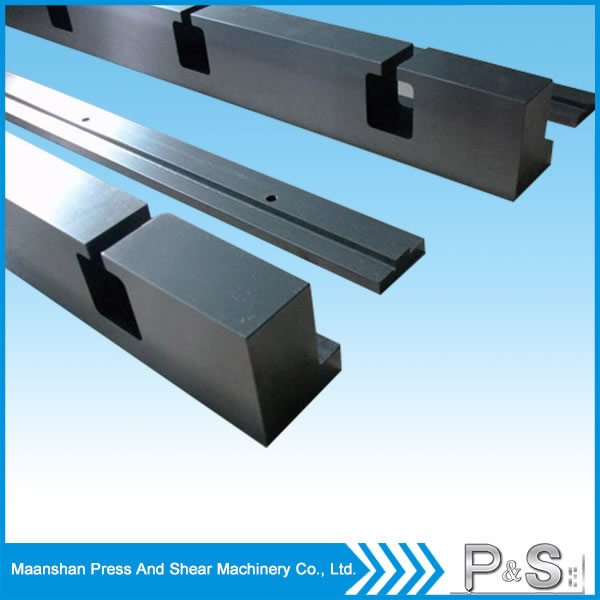

Press Brake Tooling, Amada
This is our line of precision press brake tooling for a full series of Amada press brakes.
Material: 42CrMo (42CrMo4)
Hardness: 47+/-2 HRC
Tolerance: 0.02mm
General sections for Amada press brake tooling
Upper punch: 100(left), 10, 15, 20, 40, 50, 200, 300, 100 (right) =835mm
Lower die: 10, 15, 20, 40, 50, 100, 200, 400=835m
Application
Used on Amada press brakes (bending machines) for bending aluminum, mild steel and stainless steel.
2500mm press brake need 835mm * 3 pcs
3100mm press brake need 835mm * 4 pcs
Features
The high precision (tolerance +/-0.02mm) of the tooling is the most important feature for the Amada press brake tooling and the second one is hardness, which is 47+/-2 HRC (Rockwell).
Sections of the Amada press brake tooling lead you to split joint pieces to get the length you want (that is not 835mm ),
For example, you have 10mm, 15mm, 20mm, then you connect them for 45mm tooling.
Pricing
Our prices for Amada press brake tooling is much lower than the original prices from Amada.
